VLM FN

Model: VLMFN
W : 150 – 400 mm
R : 25 mm
Max. Load: 90° 600 t/m
Operating angle: from 60° – 180°
Die length: 600 mm
VLMFNfront

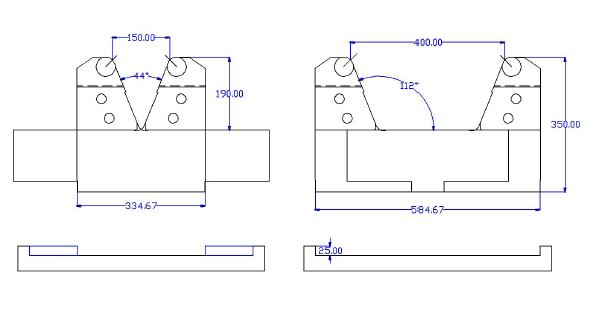

 VLMFN 2D 1

VLMFN Assembly
VLMFN samenstelling
Bottom holder DN1








Part list VLMFN, Number of parts is depending of the required length:




1 VLFFN 1R-1L
2 VLMFN 2
3 VLMFN 3
4 VLMFN 4
5 VLMFN SA
6 VLMFN nut
7 VLMFN insert
8 VLMFN SS
VLMFN Bottom holder
10  VLMFN Spacer  bar




VLMFN Fig 1

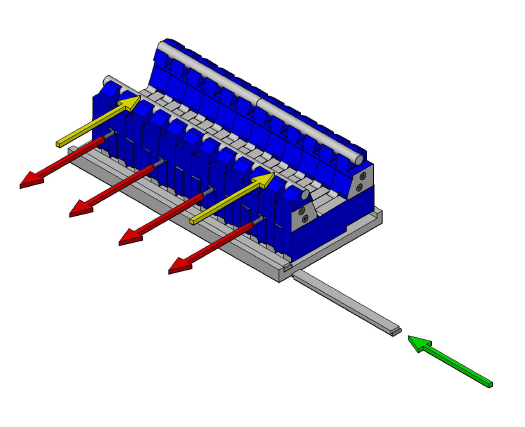

rode pijl VLM First, the securing screws (8) must be loosened until the desired spacer bar width.

gele pijl VLM Then, the front die halves  are pushed backward so that the spacer bars are freely accessible.

groen epijl The spacer bars (10) can then be removed and replaced by the desired spacer bars.
Figuur 1

VLMFN Fig 2

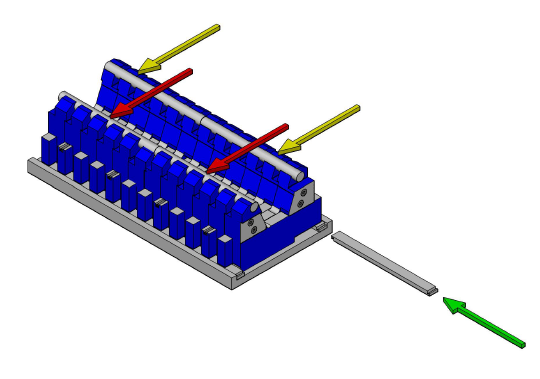

gele pijl VLM The rear die halves  are then pushed against the securing screws so there is space for the desired spacer bars.

groen epijl Now the new spacer bar can be pushed in.





Figuur 2

VLMFN Fig 3

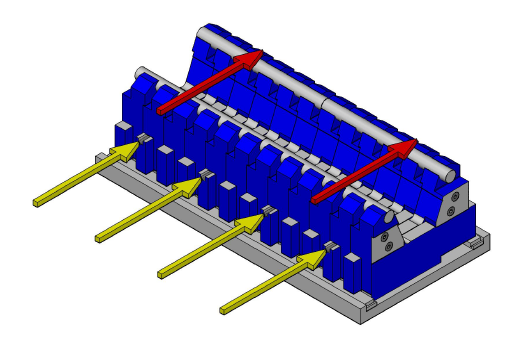

rode pijl VLM The rear die halves have to be pushed against the rear spacer bars.

groen epijl Then the securing screws have to tighten softly by hand.






Note:

When changing from a lager spacer bar opening to a smaller one, the die halves must always be pushed on the spacer bar at each pushed-in length, so that they cannot become detached from each other

note
