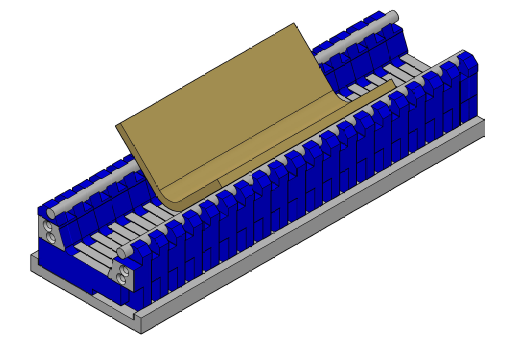

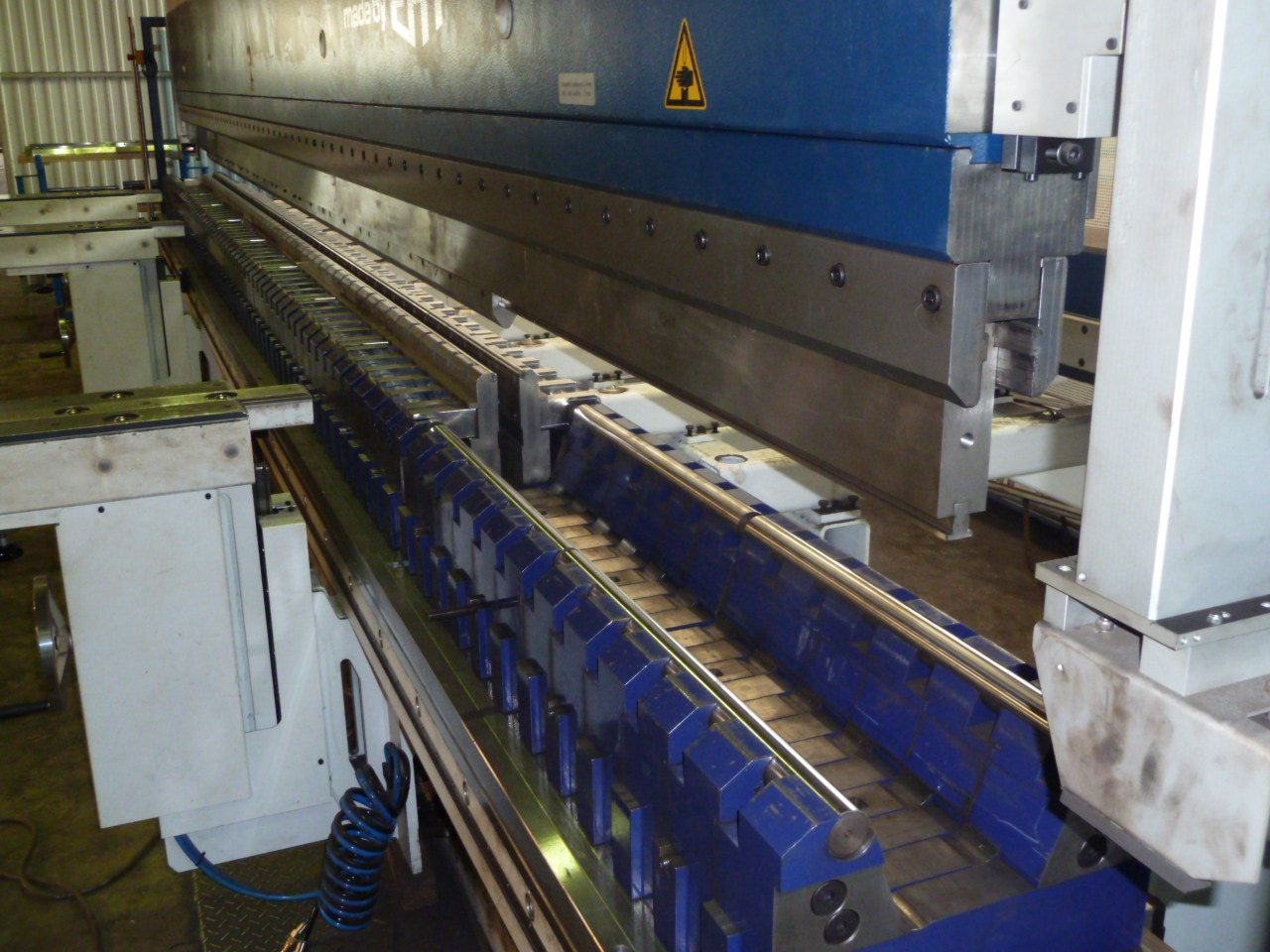

VLMDN

Model: VLMDN

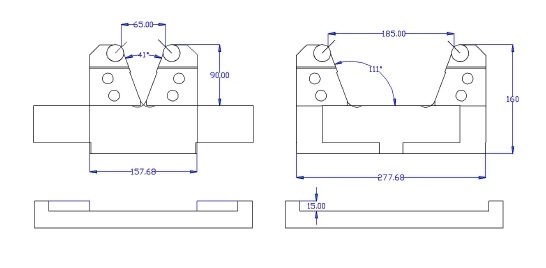

W : 65 – 185 mm
R : 12,5 mm
Max. Load: 200 t/m 90°
Zethoeken: van 60° – 180°
Matrijslengtes: 250, 500, 550, 1000 en 1050 mm

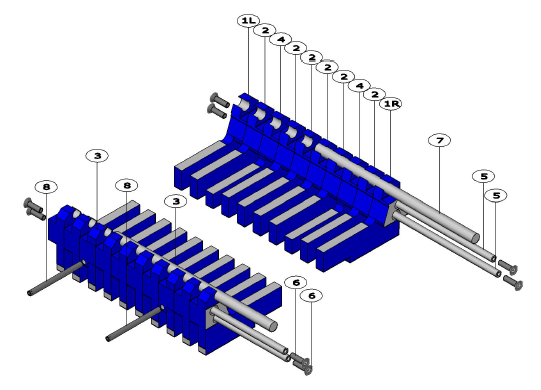

VLMBN Assembly.

Part list VLMBN Number of parts is depending of the required length:

1	VLMDN 1R-1L
2	VLMDN 2
3	VLMDN 3
4	VLMDN 4
5	VLMDN SA
6	VLMDN nut
7	VLMDN ZA
8	VLMDN SS
9	VLMDN Bottom holder
10	VLMDN Spacer bar

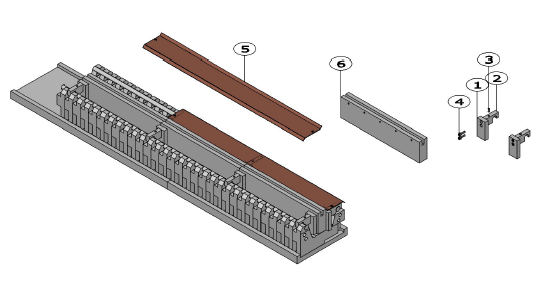

VLMDN Additional tool

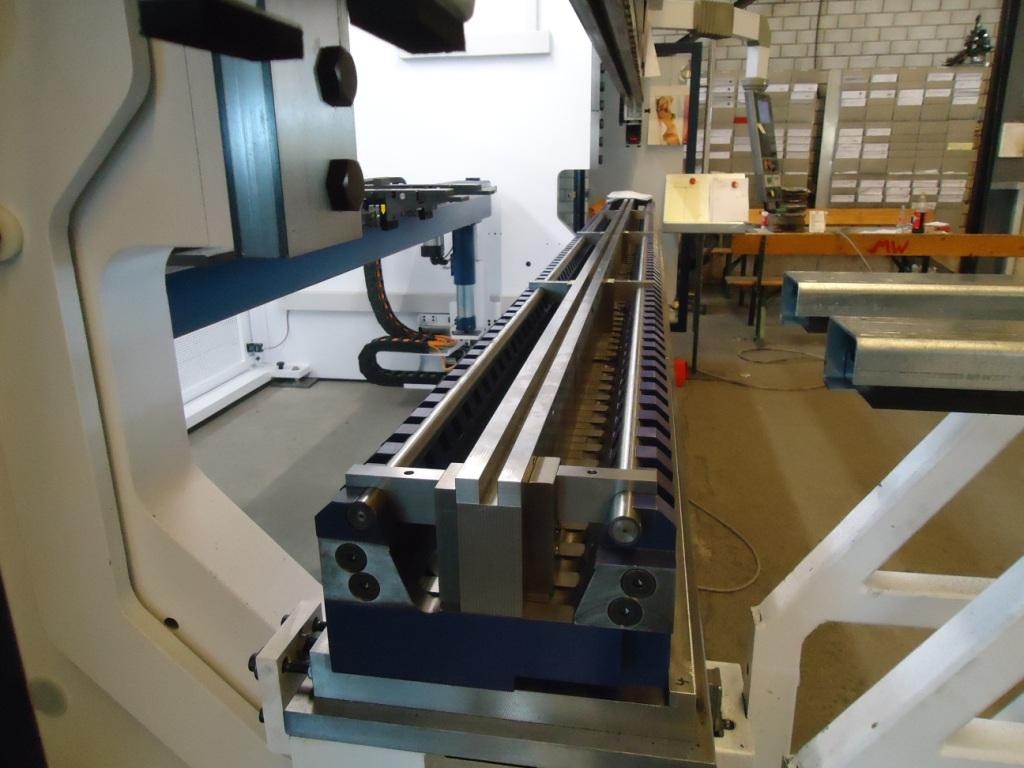

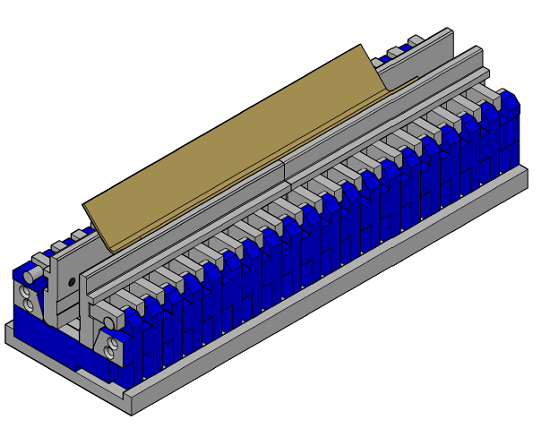

VLMDN insert dies V 5 - 60 mm on customer specification

VLMDN Sample of adjusting.


	First, the securing screws (8) must be loosened until the desired spacer bar width.

	Then, the front die halves are pushed backward so that the spacer bars are freely accessible.

	The spacer bars (10) can then be removed and replaced by the desired spacer bars.

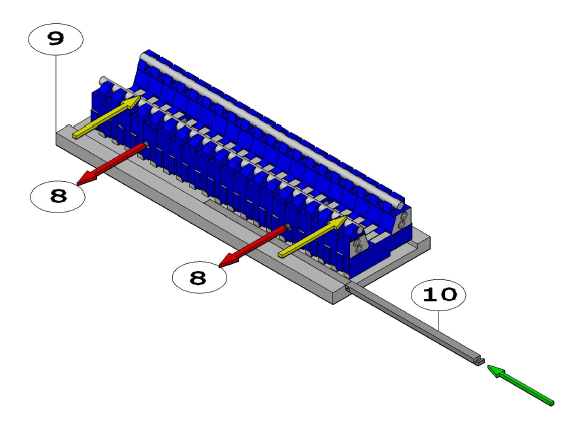

Figur 1


	The rear die halves are then pushed against the securing screws so there is space for the desired spacer bars.

	Now the new spacer bar can be pushed in..

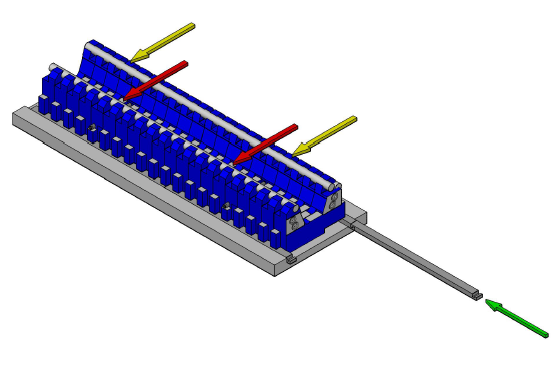

Figur 2


	The rear die halves have to be pushed against the rear spacer bars and there

	after the securing screws have to tighten softly by hand.

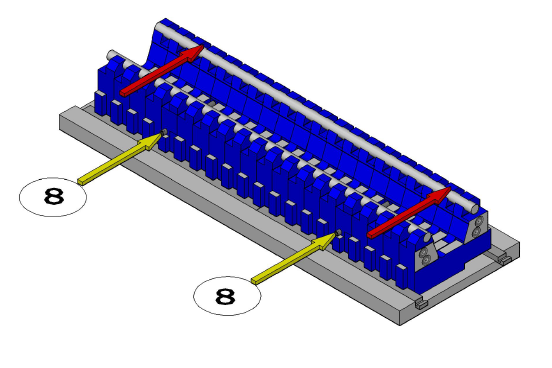

Figur 3

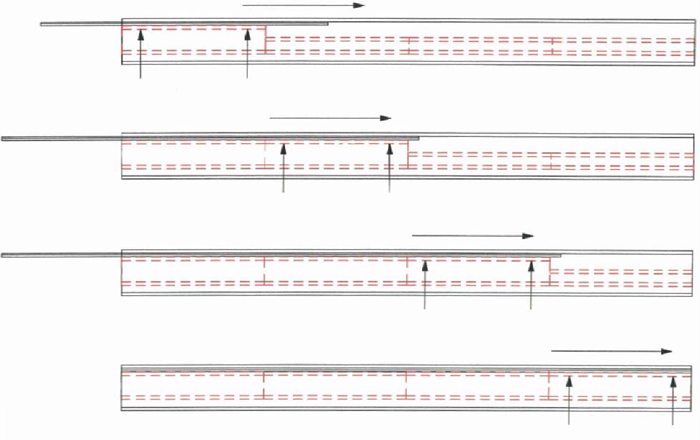

Note:

When changing from a lager spacer bar opening to a smaller one, the die halves must always be pushed on the spacer bar at each pushed-in length, so that they cannot become detached from each other
